Blocked or damaged drains have a way of turning an ordinary Tuesday into a stressful, expensive ordeal. The moment water backs up or a foul smell drifts through the house, most homeowners brace themselves for the worst: a team of workers tearing up the garden, cracking through concrete, and leaving behind a muddy trench that costs thousands to restore. The good news is that, for the majority of domestic drain problems in southern UK properties, there is a far less disruptive solution. No-dig drain relining lets engineers repair pipes from the inside, without a single spade in the ground. This guide walks you through every stage of the process, from assessing suitability to aftercare, so you can make informed decisions and get your drains back in service fast.
Table of Contents
- How no-dig drain relining works
- When no-dig relining is (and isn’t) suitable
- Tools, materials and what to expect
- Step-by-step guide: no-dig drain relining for UK homes
- Troubleshooting and common mistakes
- Aftercare and preventing future issues
- Get expert drain relining or solve any drainage problem
- Frequently asked questions
Key Takeaways
| Point | Details |
|---|---|
| No-dig relining is non-invasive | It repairs most drain problems without needing to dig up your property. |
| Not suitable for all pipe issues | Relining only works if drains are accessible and not completely collapsed or deformed. |
| Preparation ensures success | Inspect and clean thoroughly before relining for the best results. |
| Steps can be done in a day | Most domestic relining jobs can be completed in 8 hours or less. |
| Good maintenance prevents repeat problems | Follow aftercare and inspection routines to make relining last decades. |
How no-dig drain relining works
No-dig relining, also called trenchless pipe lining, repairs damaged drains by inserting a resin-saturated liner inside the existing pipe. Once the resin cures, it forms a smooth, rigid new pipe within the old one. No excavation required. Understanding how drain relining works helps you see why it has become the preferred method for so many UK drainage engineers.
The core process follows five clear stages:
- CCTV inspection to assess the pipe’s internal condition
- High-pressure jetting to clear debris and prepare the surface
- Liner insertion using either an inversion drum or pull-through method
- Curing the resin with ambient air, hot water, or steam
- Final CCTV check to confirm the repair is complete and watertight
The advantages are significant. Most jobs are completed within a single working day. Disruption to your garden, driveway, or flooring is minimal. Costs are typically lower than excavation because labour and reinstatement work are dramatically reduced.
That said, relining is not a universal fix. It requires the pipe to be structurally intact enough for a camera and liner to pass through. If a pipe has completely collapsed or is severely misaligned, excavation remains the only option. Over 70% of moderate domestic drain issues, however, can be resolved trenchlessly, making relining the first port of call for most properties. If you want to understand what is relining in more technical detail, our service pages break it down clearly.

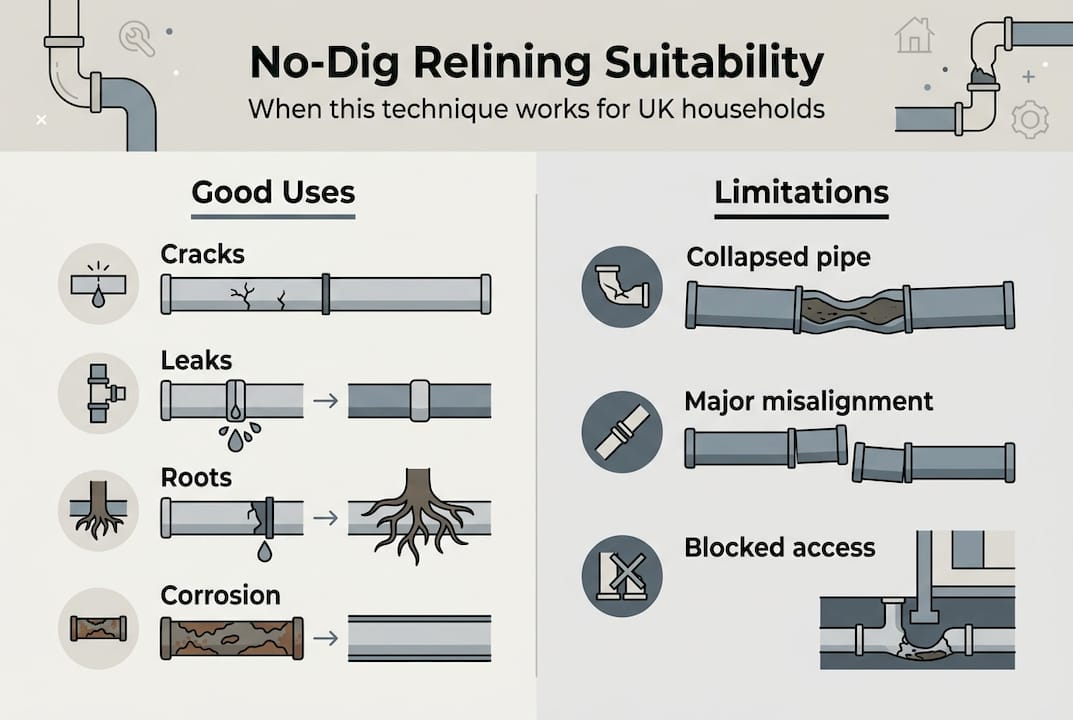

When no-dig relining is (and isn’t) suitable
Before committing to relining, you need to know whether your pipes actually qualify. Spending money on a survey only to discover the pipe is beyond relining is frustrating and avoidable with a little upfront knowledge.
Relining works well for cracks, leaks, root intrusion, minor joint displacement, and corrosion. It does not work for pipes that are completely collapsed, severely misaligned, or inaccessible. A misalignment greater than 25 to 30 degrees, a pipe that has lost its circular shape, or a section with no accessible entry point will all rule out relining.
| Issue type | Suitable for relining? | Likely alternative |
|---|---|---|
| Hairline cracks or fractures | Yes | N/A |
| Root intrusion (mild to moderate) | Yes | N/A |
| Leaking joints | Yes | N/A |
| Minor displacement | Yes | N/A |
| Complete pipe collapse | No | Excavation |
| Severe misalignment (>25%) | No | Excavation |
| Pipe too narrow or deformed | No | Excavation or replacement |
| No accessible entry point | No | Excavation |
Checking drain relining suitability before booking a survey saves time and money. For properties across the south of England, our guide to southern UK drain repairs covers regional considerations worth knowing.
“Relining is the ideal solution for cracks, leaks, root damage, and mild displacement. It restores structural integrity without the cost and disruption of digging. The key is accurate diagnosis first.”
Tools, materials and what to expect
Whether you are overseeing a professional team or simply want to understand what is happening on your property, knowing the equipment involved puts you in control. Good drain preparation steps make a real difference to how smoothly the job goes.
| Tool or material | Purpose | Safety note |
|---|---|---|
| CCTV drain camera | Internal inspection and fault mapping | Requires clear pipe access |
| High-pressure water jetter | Removes debris, grease, and root matter | Operator PPE required |
| Resin-impregnated liner | Forms the new pipe wall once cured | Handle with gloves; resin is an irritant |
| Calibration hose (bladder) | Holds liner against pipe wall during curing | Must match pipe diameter exactly |
| Curing system (air, hot water, or UV) | Sets the resin to a hard finish | UV systems require eye protection |
The liner passage requires sufficient diameter, clear access points, and an unobstructed run through the pipe. If any of these conditions are not met, the liner cannot be installed correctly.
In terms of disruption, expect some noise from the jetting equipment and a small working area around the access point. There is no heavy machinery, no skips, and no structural damage to your property.
What to have ready before the team arrives:
- Clear a path to all drain access points (manholes, inspection chambers)
- Protect indoor flooring if access is through the property
- Ensure pets and children are kept away from the working area
- Confirm the pipe route with your engineer in advance
Pro Tip: Clear the route to your drain access points the evening before the job. Even a few minutes of delay at the start can push a same-day job into a second visit.
Step-by-step guide: no-dig drain relining for UK homes
Here is the full sequence of what happens during a professional relining job, so you can follow along or supervise with confidence.

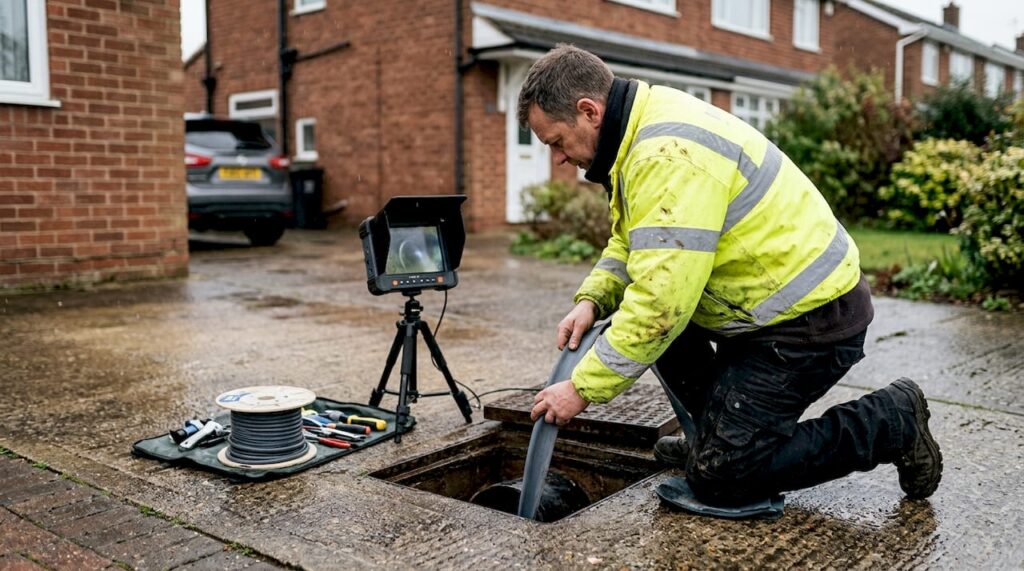

- CCTV inspection. A camera is fed through the pipe to map every crack, joint failure, or root intrusion. The pipe must allow for CCTV inspection before relining can proceed. If the camera cannot pass, relining is not possible.
- High-pressure jetting. The pipe is thoroughly cleaned using a powerful water jet. All debris, grease, and root matter must be removed before the liner goes in.
- Measuring and cutting the liner. The liner is cut to the exact length of the damaged section. Accuracy here is critical.
- Saturating the liner with resin. The felt or fibreglass liner is impregnated with epoxy or polyester resin, which will harden into the new pipe wall.
- Inserting and positioning the liner. Using either an inversion drum (which turns the liner inside out as it enters the pipe) or a pull-through method, the liner is positioned precisely over the damaged area.
- Curing the resin. A calibration hose inflates inside the liner, pressing it firmly against the pipe wall. The resin is then cured using ambient air, hot water, or a UV light system.
- Final CCTV check. Once cured, the camera goes back in to confirm the liner is smooth, fully bonded, and watertight.
For a more detailed breakdown, our step-by-step drain relining page covers timings and cost savings in full. You can also find a broader detailed drain repair guide for homeowners who want to understand the wider repair process.
Pro Tip: Always confirm the pipe length and diameter with your engineer before the liner is cut. A liner that is even slightly too short or too wide will need replacing, adding cost and time to the job.
Troubleshooting and common mistakes
Even a well-planned relining job can run into problems. Knowing what to watch for means you can catch issues early rather than discovering them months later.
The most common setbacks include:
- Incomplete pipe cleaning. If debris or grease remains on the pipe wall, the resin will not bond properly and the liner may fail.
- Liner wrinkles. These occur when the liner is not positioned correctly or the calibration hose is not inflated evenly.
- Resin not curing fully. This can happen if the curing time is cut short or the temperature is too low.
- Leaks after relining. Usually caused by a liner that does not cover the full damaged section, or poor bonding at the joints.
Major sags, deformities, and blockages prevent successful relining and are sometimes missed during a rushed pre-inspection. This is why a thorough CCTV survey is non-negotiable.
“Over 50% of residential relining failures come down to missed cleaning or insufficient preparation. A pipe that looks clear to the eye can still carry enough residue to compromise the liner bond.”
For guidance on the best drain relining techniques used by professionals, our resource page covers the methods that consistently deliver the best results.
Aftercare and preventing future issues
Once your relined drain is back in service, a small amount of ongoing attention will protect your investment for decades.
In the first 48 hours after relining:
- Monitor for any unusual odours or gurgling sounds, which may indicate incomplete curing or a small gap in the liner
- Avoid flushing anything other than water and toilet paper until the liner is confirmed fully set
- Check that all inspection chamber covers are properly replaced and sealed
For long-term maintenance, follow these habits:
- Never pour cooking fat, oil, or grease down the drain
- Use a drain guard on kitchen and bathroom plugs to catch debris
- Avoid flushing wet wipes, cotton wool, or sanitary products
- Schedule a CCTV inspection every two to three years, particularly for older properties
Our maintenance steps after relining guide shows how simple habits can reduce blockage risk by up to 60%, which is a significant saving over the lifetime of the drain.
Catching a small crack or root intrusion early, before it becomes a full failure, is always cheaper than waiting for a complete blockage or collapse. Regular inspections are the single most effective thing a homeowner or landlord can do to protect their drainage system.
Get expert drain relining or solve any drainage problem
This guide gives you a solid foundation for understanding and overseeing a no-dig relining project. But sometimes the pipe condition, the access point, or the scale of the damage makes professional involvement the smarter choice.
Our team across southern UK offers fast CCTV diagnosis, precise relining, and a workmanship guarantee on every job. Whether your drain qualifies for our professional drain relining service or needs a more involved repair, we will give you an honest assessment and a clear quote. For blocked drains that need clearing before relining can begin, our drain unblocking services are available across the region. You can also explore our full step-by-step drain relining resource to see exactly what our process delivers and how much you could save compared to traditional excavation.
Frequently asked questions
How long does no-dig drain relining take for a typical home?
Most domestic relining jobs are completed within 4 to 8 hours, depending on pipe length and the number of access points available.
Is no-dig relining possible for clay or old ceramic pipes?
If the pipe is still structurally intact for relining and accessible, clay or ceramic pipes can usually be relined. A collapsed or severely deformed pipe of any material will not qualify.
Can I use my drains immediately after relining?
You should wait until the liner is fully cured before using the drains again. Curing typically takes 2 to 4 hours, though your engineer will confirm the exact wait time based on the method used.
What are the long-term benefits of relining instead of replacement?
Relined drains are seamless, resistant to root intrusion, and highly durable. With proper aftercare, a relined pipe can last 50 years or more, making it a cost-effective long-term solution.
What is the biggest limitation of no-dig drain relining?
Relining cannot fix complete collapse, severe misalignment, or pipes that cannot be accessed internally. In those cases, excavation is the only viable repair method.
